Mastic Electrical Tape

  • Image of 3M™ Scotch® Vinyl Mastic Tape 2200 wrapping a low voltage cable in an irrigation hole.

    Putty on a roll. Or on a pad.

    The term “mastic” is widely used in the construction industry, especially by tile setters. Many electricians don’t realize that the gooey electrical tape they use to resist moisture is also a mastic. But this mastic rubber material is specially formulated for use as a dielectric insulator. Mastics from 3M are compatible with thermoplastic rubber wire insulation.

    When you are working with odd shaped components or needing to tuck in some insulation where your tape won’t reach; mastic is the product to use. Think of it as putty on a roll.


webLoaded = "false"

webLoaded = "false"

Padding, Smoothing, Shaping

Built for the odd shape and the long stretch.

  • Image of 3M™ Scotch-Seal™ Mastic Sealing Tape 2229 wrapping around a low voltage cable with sealing connector covered with Scotch® 2510 Varnish Cambric Tape.

    Pad your connections to save you ‘dough’.

    Mastic tapes provide mega-stretch−up to 1000 times their original length. Sharp edges and bolted connections create potential puncture risks and failure modes for your splices which can result in costly downtime and repairs. With multiple configurations and thicknesses of moldable and stretchable sheets, rolls, putty and laminated combinations, you can shape, smooth and pad just about any electrical connection. 3M mastic products provide plenty of options for insulating and weatherproofing odd shapes and complex configurations like:


    • Bolted connections on bus bar
    • Split bolt connectors
    • Service drops
    • Ducts and cable ends

webLoaded = "false"
webLoaded = "false"
webLoaded = "false"
webLoaded = "false"

Moisture Resistance

Humidty? Moisture? Wrap it up!

  • Still image from 3M™ Scotch® Vinyl Mastic 2200 Pad: Moisture Sealing, Padding & Shaping video.

    This tape has healing properties.

    In addition to low-voltage electrical insulation, mastic tape offers the best moisture resistance of any electrical tape made by 3M. They create a barricade around splices and terminations, so that they are resistant to contaminants and particles that can corrode your wire and connections. Mastic tapes are often used in outdoor applications because the rubber is ‘self-healing’, meaning that when it is punctured, the material will flow to fill in the void.

    We recommend it for use within industrial environments where steam and aerosols are commonly present, and outdoor environments where connections need to resist humidity and moisture. For electrical connections that are continually submerged in liquids, 3M has other solutions like Electrical Resins.


webLoaded = "false" Loadclientside=No
Diagram showing cable jacket, wire insulation, and stripped wire.
Scotch Mastic Pro-tip:

Exceptionally pliable; it can be rolled into tubes or spheres or crafted into any shape to fill crevices left by tape splicing, especially on bifurcated cables. A mastic that’s used for this purpose is 3M™ Scotchfil™ Electrical Insulation Putty. Scotchfil putty is 125 mils thick and comes on a linered roll for easy transport and flexible sizing for your application.

webLoaded = "false"

Pest Control

  • Image of red ants walking along a cable.

    What's eating your cables?

    There is another mastic application electricians may be surprised to learn about. Mastic tape can be used to deter pests. Fire ants in the Southeastern U.S. create headaches for electricians by attacking pad mounted transformers, traffic control panels and ground level air conditioning units. *According to research done at Texas A&M University, the insects are attracted to the electrical fields, especially around relay switches. Power surges caused by these pests can cost thousands of dollars in electronics repairs or even human lives if those relays operate train switches.

    Pests and rodents can cause havoc. Help reduce your regular maintenance costs with a simple mastic solution.

    *Merchant, Mike. “Insects in the City: Fire ants shock homeowners.”
    http://insectsinthecity.blogspot.com/2009/06/fire-ants-shock-homeowners.html (accessed September 15, 2017).


webLoaded = "false" Loadclientside=No
Solid orange background image.
Scotch Mastic Pro-tip:

Keep a box of Scotch® Vinyl Mastic Pads 2220 in your maintenance truck or toolbox. They are ideal for fast installation around connections and splices and can be used when repairing damage caused by unplanned moisture or pests.

webLoaded = "false"

Laminated Solutions (Mastic + Vinyl or Rubber)

Jackets required. This tape can ooze.

  • Mastic is going to flow. So, for the better mechanical protection and to help prevent it from making a mess in your application; mastic should be completely overwrapped with another protective material like vinyl (PVC) or rubber tape. To make your job easier, 3M offers laminated solutions that combine these materials for one step applications.


    • Scotch® Vinyl Mastic Pad 2200 (125 mil) and Tape 2210 (90 mils) and thinner Scotch® Electrical Moisture Sealant Pad 06149 and Roll 06147 have polyvinyl chloride backings.
    • Scotch® Electrical Moisture Sealant Pad 06149 and Roll 06147 are thinner (45 mil) and also have vinyl backings.
    • Scotch® Rubber Mastic 2228 has an ethylene propylene rubber backing to help resist liquid ingress.

webLoaded = "false" Loadclientside=No
Solid orange background image.
Scotch Mastic Pro-tip:

If Scotch® Rubber Mastic 2228 is applied in a gritty, rough environment, electricians may create added mechanical protection by overwrapping with Scotch® Vinyl Electrical Tape Super 88. Vinyl tape helps your splices and terminations resist copper corrosive chemicals and acids.

webLoaded = "false"

Mastic Electrical Tape Do’s and Dont's

  • DO

    • Use on split bolt connections to smooth out irregular shapes
    • Apply like putty in the inside ‘elbow’ of a multi-conductor cable where tape can’t quite reach
    • Keep a roll of mastic on the truck or in the plant for quick and critical fixes
    • Use underground to help protect from moisture that may corrode conductors
    • Use indoors where water and aerosols are sprayed or present
    • Use on solar panels and wind towers where there’s a consistent need for UV protection
    • Use in environments that require higher continuous operating temperatures
    • Use as a moisture seal at ground wire exit points
  • DON'T

    • Use on connections where re-entry is needed without pre-wrapping with varnished cambric or backwound (adhesive side out) vinyl
    • Use mastic on a roll when a pad will do a more efficient job; taping motor leads for instance
    • Use as the primary insulation on voltages >1kV. (Can be combined with rubber tape for higher voltage applications)
    • Use without the proper protective jacket
    • Apply in temperatures below 32°F (0°C) unless it’s a premium product like Scotch® Vinyl Mastic Tape or Pads 2200 and 2210 which can be applied down to 0oF (-18oC)

webLoaded = "false"

Mastic Tapes for Insulating and Sealing

There is a mastic for virtually every application.

Mastic comes in tape and roll form and in a variety of thicknesses and operating temperatures.


  • Choose thinner mastics for moisture resistance in lower voltages and tight spaces.
  • Choose thicker mastics when you need extra padding and durability from sharp edges or heavy vibrations.
  • Save time and eliminate the added step of overwrapping when you use pre-laminated vinyl mastic and rubber mastic products.

Even with a lot of information, understanding the pros and cons and picking a tape can be tricky. Let 3M save you time with these application summaries and quick product comparisons to find the right mastic solution for your application.

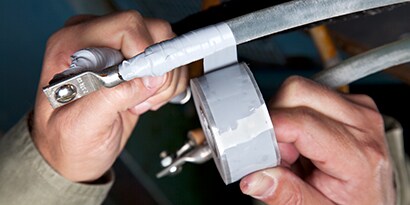

  • Image of 3M™ Scotchfil™ Electrical Insulation Putty applied over split bolt wrapped with Scotch® Self-Fusing Silicone Rubber Tape 70 HDT.

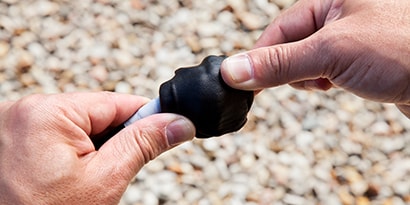

    Mastic Rolls, Pads & Putty

    Choose mastic only when you need padding, flexibility and conformability to manipulate the material to fit on or in your application. At 125mils, they are your thickest options - but these tape, pads and putty are versatile and can be cut, stretched, scrunched and rolled to fit in even small spaces. However, you will still have to wrap another material like vinyl over it to contain the mastic and provide jacketing protection.

    Premium Tape

    3M™ Scotch-Seal™ Mastic Tape and Pads 2229

    3M™ Scotchfil™ Electrical Insulation Putty

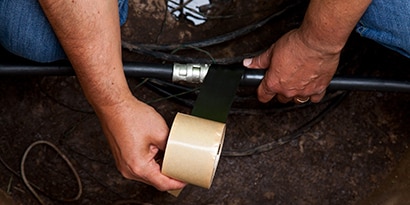

  • Image of 3M™ Scotch® Vinyl Mastic Tape 2200 wrapping a low voltage cable in an irrigation hole.

    Vinyl Mastic Rolls and Pads

    Choose a vinyl mastic when you need quick installations and outdoor performance. You get the moisture sealing benefits with a slightly thinner mastic, without the added step of overwrapping with a vinyl tape. Great for fast maintenance, insulating and padding low voltage connections and cable jacket repair.

    Premium Tape

    Scotch® Vinyl Mastic Pad 2200 and Roll 2210 combine thicker mastic layers with the world-class performance benefits of Scotch® Super 33+™ Vinyl Electrical tape and allow installation down to 0oF (-18oC).

    General Purpose

    Scotch® Electrical Moisture Sealant Pad 06149 and Roll 06147 are half as thin and utilize 3M™ Temflex™ Vinyl Electrical Tape 1700 for abrasion and puncture resistance down to 32oF (0oC)

  • Image of 3M™ Scotch® Rubber Mastic Tape 2228 wrapping a medium voltage cable in a manhole.

    Rubber Mastic Rolls

    Choose rubber mastic for insulating, padding and resisting moisture in high voltage applications up to 1000V. The layer of Scotch® Linerless Rubber Tape 130C dissipates heat and works up to 90oC with an overload temperature of 130oC

    Premium Tape

    Scotch® Rubber Mastic Tape 2228

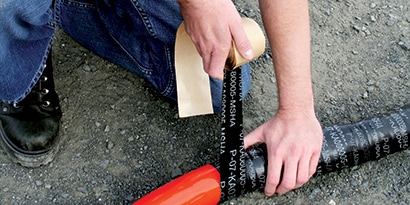

  • Image of 3M™ Scotch® Heavy Duty Mining Tape 31 application.

    Mining and Cable Jacket Repair Tapes

    Choose a cable jacket repair tape for preventative cable maintenance, and on-site repairs in rough environments like construction sites, steel mills, petrochemical plants and industrial manufacturing. They include flame-retardant mastic to keep moisture away and provide excellent adhesion to a variety of cable jacket materials.

    Premium Tape

    Scotch® Heavy Duty Mining Tape 31

    Scotch® Cable Jacket Repair Tape 2234


webLoaded = "false"
  • Scotch® Premium Electrical Tapes

    The key to selecting the right electrical tape for your application.

    There are some basic rules to follow when you’re selecting electrical tape.


    • Vinyl backed tapes have a strong, flexible, abrasion resistant PVC backing which provide a barrier from moisture and corrosive elements. They are often the first and most economical choice for primary and secondary insulation.
    • Mastic tapes offer excellent adhesion and sealing characteristics to metals, rubbers, synthetic cable insulations and jackets. They provide UV resistance and are designed for outdoor conditions because they quickly and easily seal out moisture.
    • Rubber tapes are designed for use in splicing and terminating wires and cables with options rated up to 69kV. They have excellent physical and electrical properties and are ideal for adding moisture protection and padding to electrical connections and cables.

    Get more information on product selection, applications and training in our Electrical Resource Center.
